RF Products

Triple-band Combiner

Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
190x215x55, 190x215x115
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:690-862, B2:880-960, B3:1710-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
214x180x52, 214x180x105
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-1880, B2:1920-2170, B3:2300-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
220x180x50, 220x180x103
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:380-960, B2:1710-1880, B3:1920-2170
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
187x172x48, 187x172x101
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

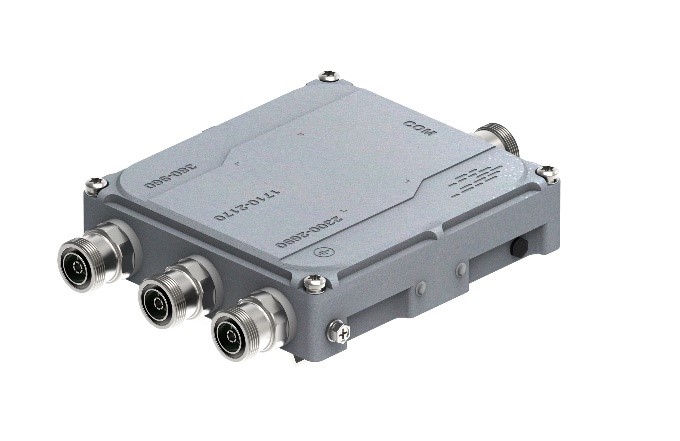

B1:380-960, B2:1710-2170, B3:2300-2690
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
204x180x53, 204x180x113
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

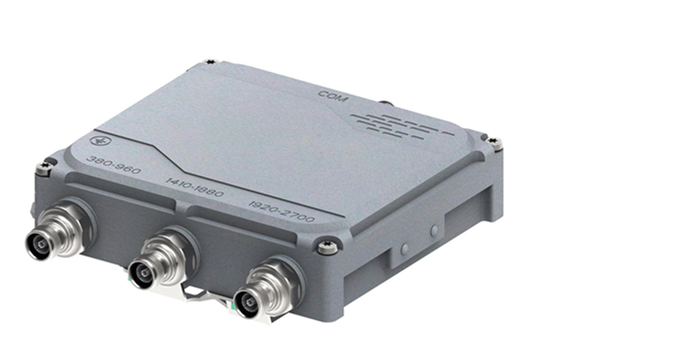

B1:380-960, B2:1410-1880, B3:1920-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
241x199x55, 241x199x115
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

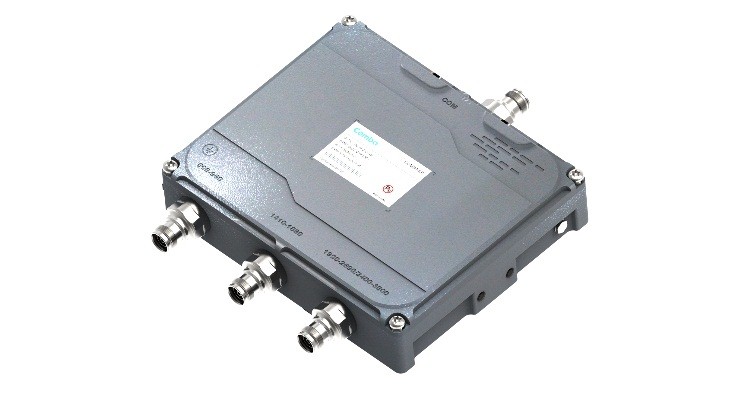

B1:698-960, B2:1410-1880, B3:1920-2690/3400-3800
DETAILS
Intermodulation @2x43dBm(dBc)
-155
Dimension (L x W x H in mm)
146x135x44.5, 146x135x94
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

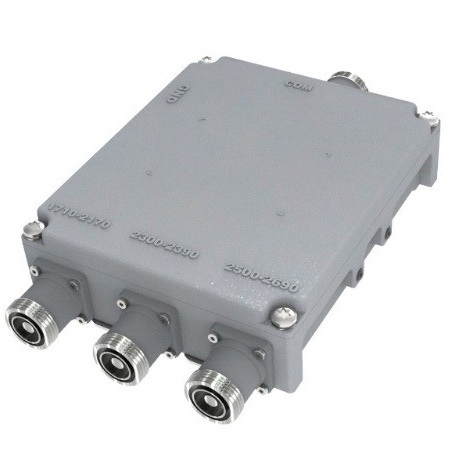

B1:1710-2170, B2:2300-2390, B3:2500-2690
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
202x155x47, 202x155x100
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

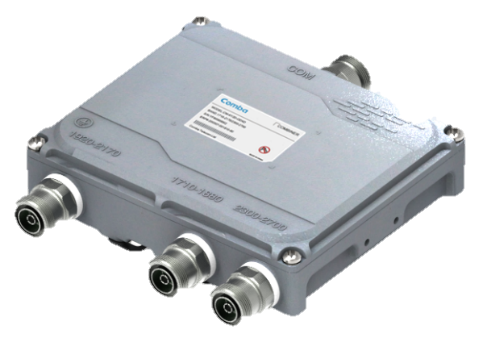

B1: 1850-1995, B2: 1710-1770 &2110-2170, B3: 2496-2690
DETAILS
